| Brand Name: | Huiyunhai |
| Model Number: | HYH |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | special sleeving packing |
| Payment Terms: | T/T, Western Union |

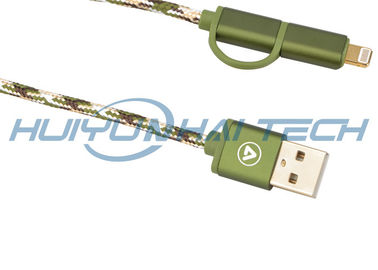

Color Mixed Cotton Braided Sleeving Soft Wear Resistant For Cable Harness
Application of cotton braided sleeving
It's used to cover cables, wire harnesses, tubes, industrial hoses, Automotive, Automatic equipment, where is required an additional protection.
1. Automobile wires protection
2. Structured cabling system
3. A/V cables & HDMI cables
4. Industrial hoses & tubes protection
Braided Cable Sleeving - Flexible Braiding For Wiring Looms. Flexible Braided Sleeving - A Versatile Cable Bundling and Protection Solution. Can be cut with scissors - to prevent fraying use heatshrink over the ends or use a soldering iron to melt the braid slightly and bind the filaments together.
Advantage :
1) High Density PP Cotton sleeve
2) Reduce harness weight
3) Easy access for breakouts
4) Highly flexible and durable
5) –60°C~+100°C
6) Extreme abrasion resistance
7) Resistants common chemicals
8) Heavy duty and flexible
Notes:
1. Nominal size indicates the flat width.
2. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
3. This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
4. Special packing, sizes, and colors can be supplied upon request.
5. All numerical data are average or typical values, not including customized sizes.
| Model | Natural OD(MM) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
Model | Natural OD(MM)) |
Max Expand OD(MM) |
N.W(g) | Packing (M/spool) |
|
| 161020 | 1 | 2 | 2.5 | 1000 | 641025 | 8 | 16 | 7 | 500 | |
| 161025 | 1 | 2 | 2.5 | 1000 | 642020 | 12 | 25 | 10.5 | 500 | |
| 162020 | 2 | 4 | 3 | 1000 | 642025 | 14 | 30 | 12 | 500 | |
| 162025 | 3 | 6 | 3 | 1000 | 643020 | 16 | 32 | 14 | 500 | |
| 163020 | 3 | 6 | 4 | 1000 | 643025 | 18 | 35 | 17 | 250 | |
| 163025 | 4 | 8 | 4 | 1000 | 721020 | 8 | 16 | 6.5 | 800 | |
| 241020 | 2 | 4 | 3 | 1000 | 721025 | 9 | 18 | 7.5 | 800 | |
| 241025 | 2 | 4 | 3 | 1000 | 722020 | 14 | 28 | 12 | 500 | |
| 242020 | 3 | 6 | 4.5 | 1000 | 722025 | 16 | 32 | 14 | 500 | |
| 242025 | 4 | 8 | 4.5 | 1000 | 723020 | 18 | 35 | 16 | 300 | |
| 243020 | 4 | 8 | 5 | 800 | 723025 | 23 | 45 | 19 | 200 | |
| 243025 | 5 | 10 | 5.5 | 500 | 961020 | 10 | 20 | 8 | 500 | |
| 321020 | 3 | 6 | 3 | 1000 | 961025 | 11 | 22 | 9 | 560 | |
| 321025 | 3 | 6 | 3 | 1000 | 962020 | 20 | 40 | 14 | 500 | |
| 322020 | 5 | 10 | 4.5 | 500 | 962025 | 25 | 50 | 16 | 500 | |
| 322025 | 6 | 12 | 4.5 | 500 | 963020 | 28 | 55 | 18 | 300 | |
| 323020 | 6 | 12 | 6 | 500 | 963025 | 35 | 70 | 25 | 100 | |
| 323025 | 7 | 14 | 7.5 | 500 | 964020 | 30 | 60 | 26 | 100 | |
| 401020 | 4 | 8 | 3.5 | 800 | 964025 | 36 | 72 | 28 | 100 | |
| 401025 | 4 | 8 | 3.5 | 800 | 965025 | 40 | 80 | 46 | 100 | |
| 402020 | 6 | 12 | 5.5 | 500 | 1201020 | 10 | 20 | 10 | 300 | |
| 402025 | 8 | 14 | 6 | 500 | 1201025 | 12 | 22 | 13 | 300 | |
| 403020 | 8 | 16 | 7 | 600 | 1202020 | 22 | 45 | 15 | 200 | |
| 403025 | 10 | 20 | 10 | 400 | 1202025 | 26 | 32 | 18 | 100 | |
| 481020 | 5 | 10 | 4 | 1000 | 1203020 | 32 | 65 | 26 | 100 | |
| 481025 | 6 | 12 | 4.5 | 500 | 1203025 | 38 | 75 | 32 | 100 | |
| 482020 | 8 | 16 | 5.5 | 500 | 1204020 | 40 | 80 | 30 | 100 | |
| 482025 | 10 | 20 | 7.5 | 500 | 1204025 | 45 | 90 | 40 | 100 | |
| 483020 | 10 | 20 | 8.5 | 600 | 1205025 | 50 | 100 | 50g | 50 | |
| 483025 | 12 | 25 | 12 | 300 | 1206025 | 64 | 130 | 60g | 50 | |
| 561020 | 6 | 12 | 5 | 1000 | 1207025 | 76 | 150 | 70g | 50 | |
| 561025 | 7 | 14 | 6 | 800 | 1486025 | 80 | 160 | 80g | 50 | |
| 562020 | 10 | 20 | 8.5 | 500 | 1487025 | 90 | 180 | 90g | 50 | |
| 562025 | 12 | 25 | 10 | 500 | 1488025 | 100 | 200 | 100g | 50 | |
| 563020 | 14 | 30 | 11 | 500 | flat1053020 | |||||
| 563025 | 16 | 32 | 15 | 250 | flat1053025 | |||||
| 641020 | 7 | 14 | 6 | 1000 | flat1054025 |
|
|
